Lighting range

Light The Feature.
Reveal The Difference.

Machine vision lights for inspection setups where illumination helps make the relevant detail easier to capture. Share your part and camera setup for a product recommendation.

Ask about lighting ↗Browse light types
Explore by format

Lighting Options For Different Setups.

Available formats include the categories below. Exact dimensions, color, intensity, and model availability should be confirmed for your application.

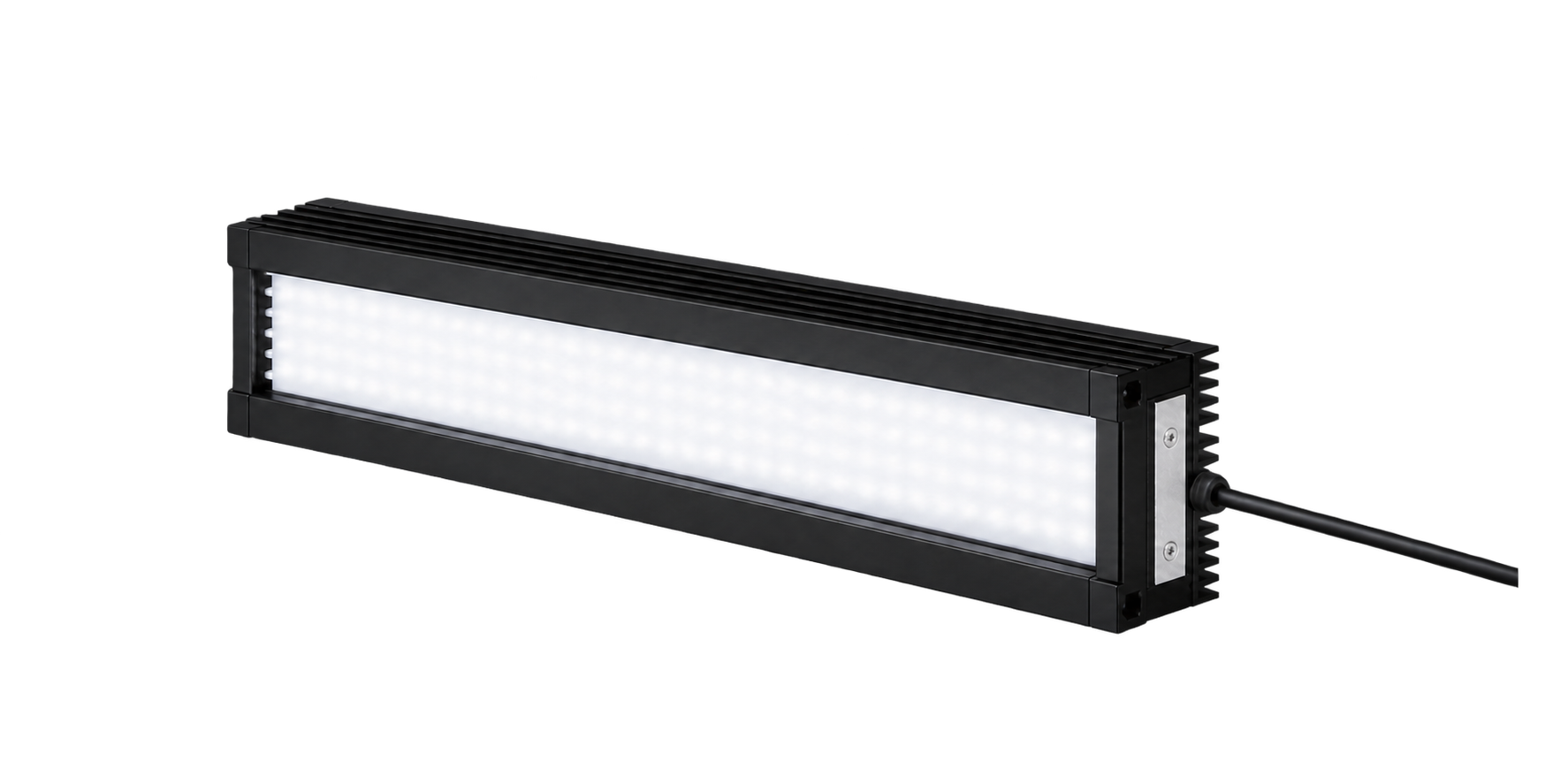

User-provided industrial machine vision bar light
Direct

Bar Lights

Linear illumination helps cover elongated parts, conveyor lanes, and inspection fields. It is a useful choice when the camera needs consistent light across a long edge or surface; select the bar length and position to match the field of view.

Specifications

SizeStandard lengths across the PS-BR series; custom dimensions and cut lengths are available.
ColorsWhite, Red, Green, Blue, UV, and IR options across the range; availability varies by series.
OthersOptional diffusion and polarization plates, lens adapters, and 1 m to 15 m extension cables.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

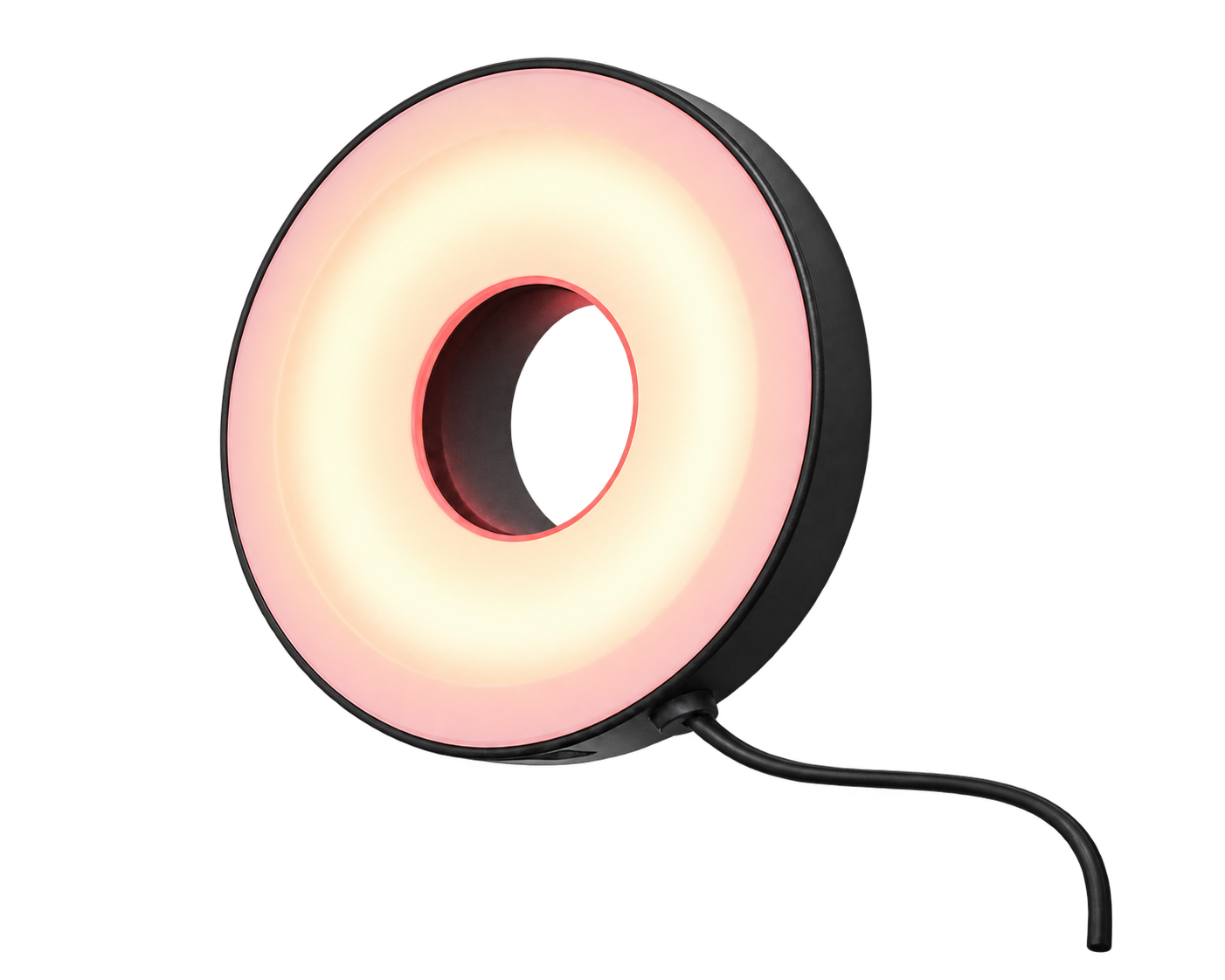

Ring light for machine vision inspection
Direct

Ring Lights

Circular illumination around the camera lens gives close-up parts a direct, even light source. Ring lights are commonly considered for presence checks, surface inspection, and reading features where the light should follow the camera axis.

Specifications

SizeMultiple inner and outer diameters; custom ring dimensions are available.
ColorsWhite, Red, Green, Blue, UV, and IR options across the range; availability varies by series.
OthersChoose the ring aperture, illumination angle, diffuser, and mounting to suit the lens and target.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

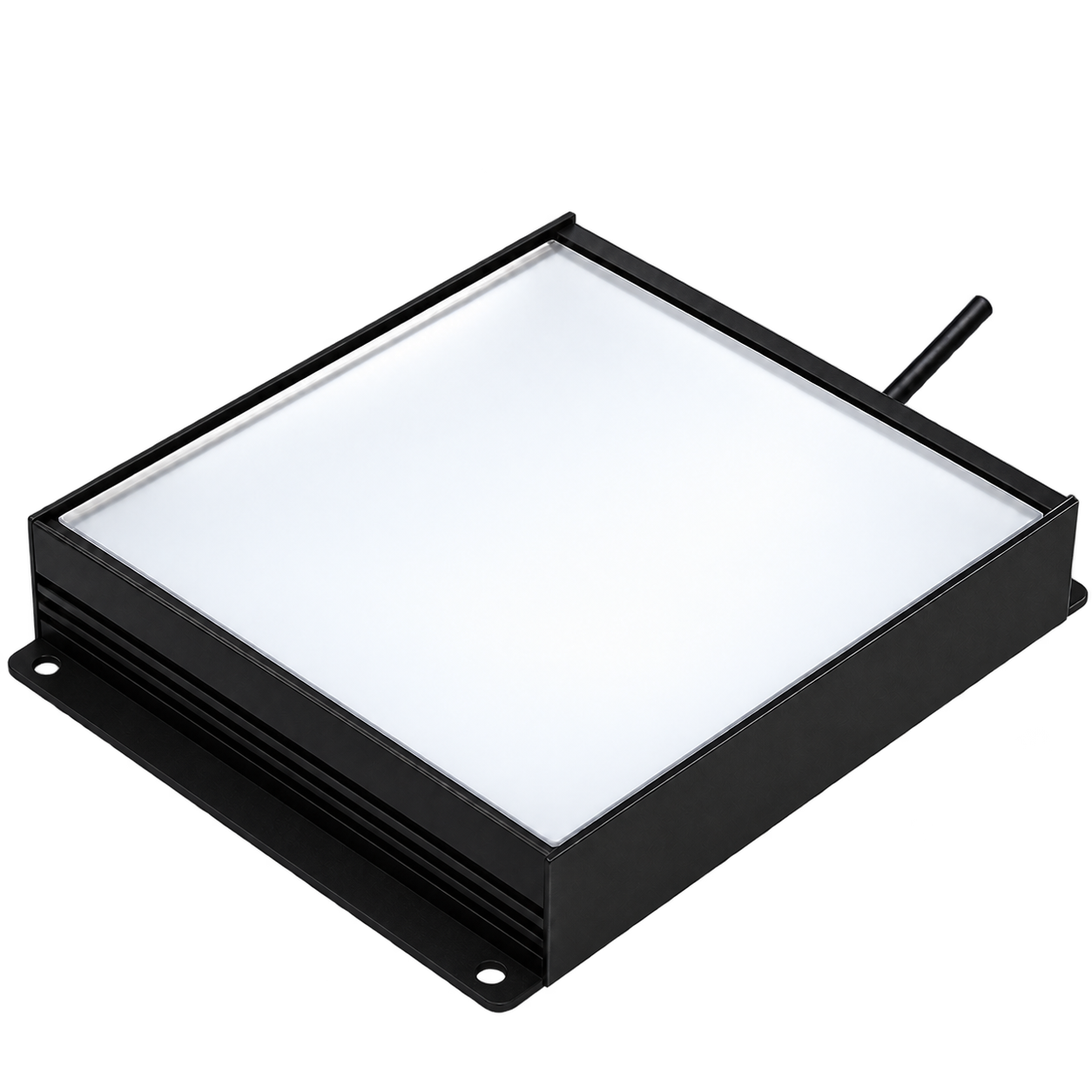

Industrial machine vision panel light
Direct

Panel Lights

A broad, flat light source can illuminate larger fields and wide part surfaces. Panel lighting is useful for general inspection, labels, and presence checks when a compact point source does not cover the scene evenly.

Specifications

SizeCatalogue models range from 30 × 30 mm up to 600 × 600 mm; custom sizes are available.
ColorsWhite, Red, Green, Blue, UV, and IR options; wavelengths vary by model.
OthersDiffusion plates with 60%, 70%, 80%, or 90% transmission, polarizers, and extension cables.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

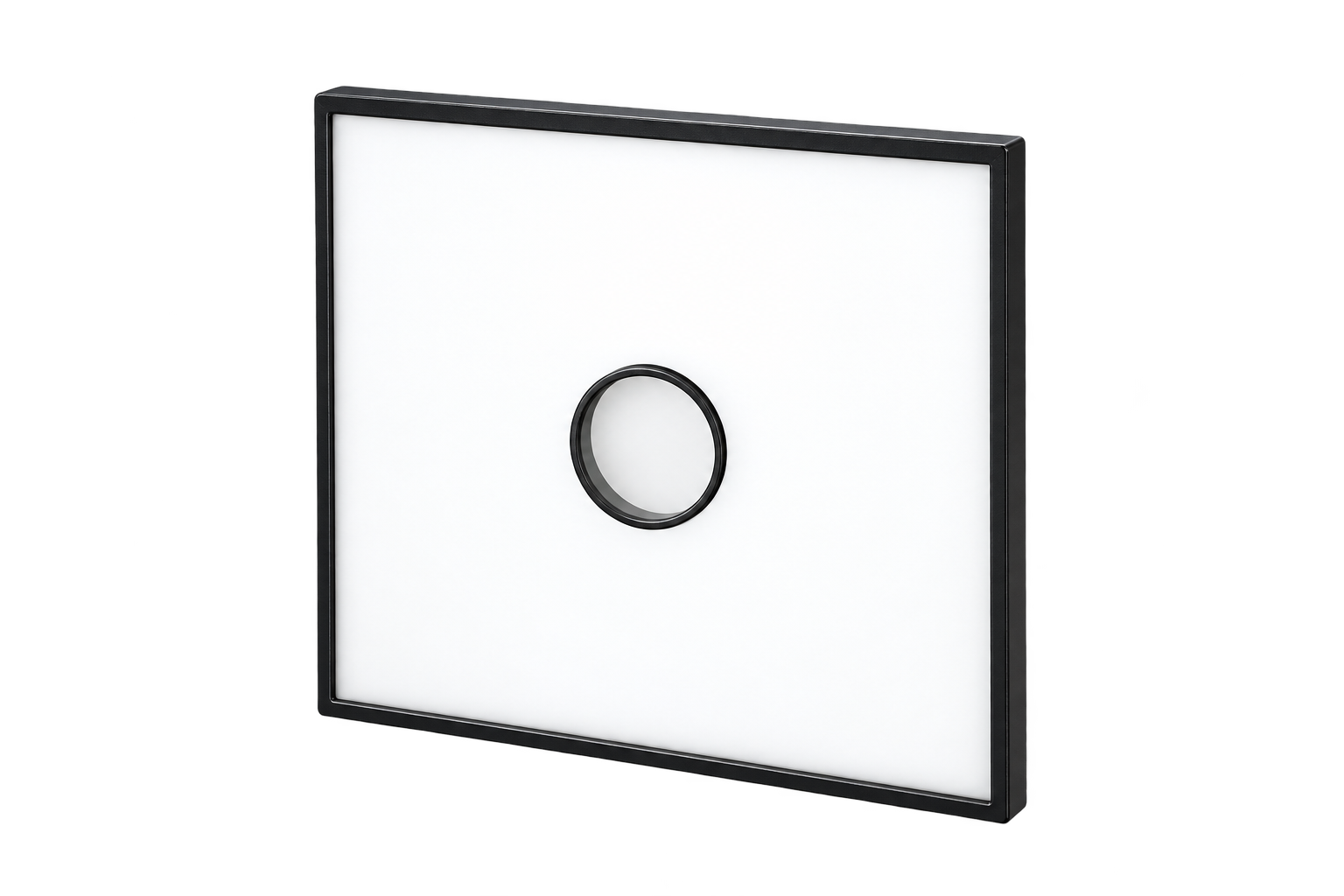

Centre Hole machine vision light using the image assigned by the user
Direct

Center Hole Light

A front light with an opening through the centre lets the camera view the part along the optical axis while light is positioned around the lens. It suits compact inspection setups where the camera and illumination need to share the same working area.

Specifications

SizeMultiple panel sizes and clear-aperture options; custom outer dimensions and openings are available.
ColorsWhite, Red, Green, Blue, UV, and IR options across the range; availability varies by series.
OthersSelect the central opening to clear the lens and camera mount while matching the inspection area.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

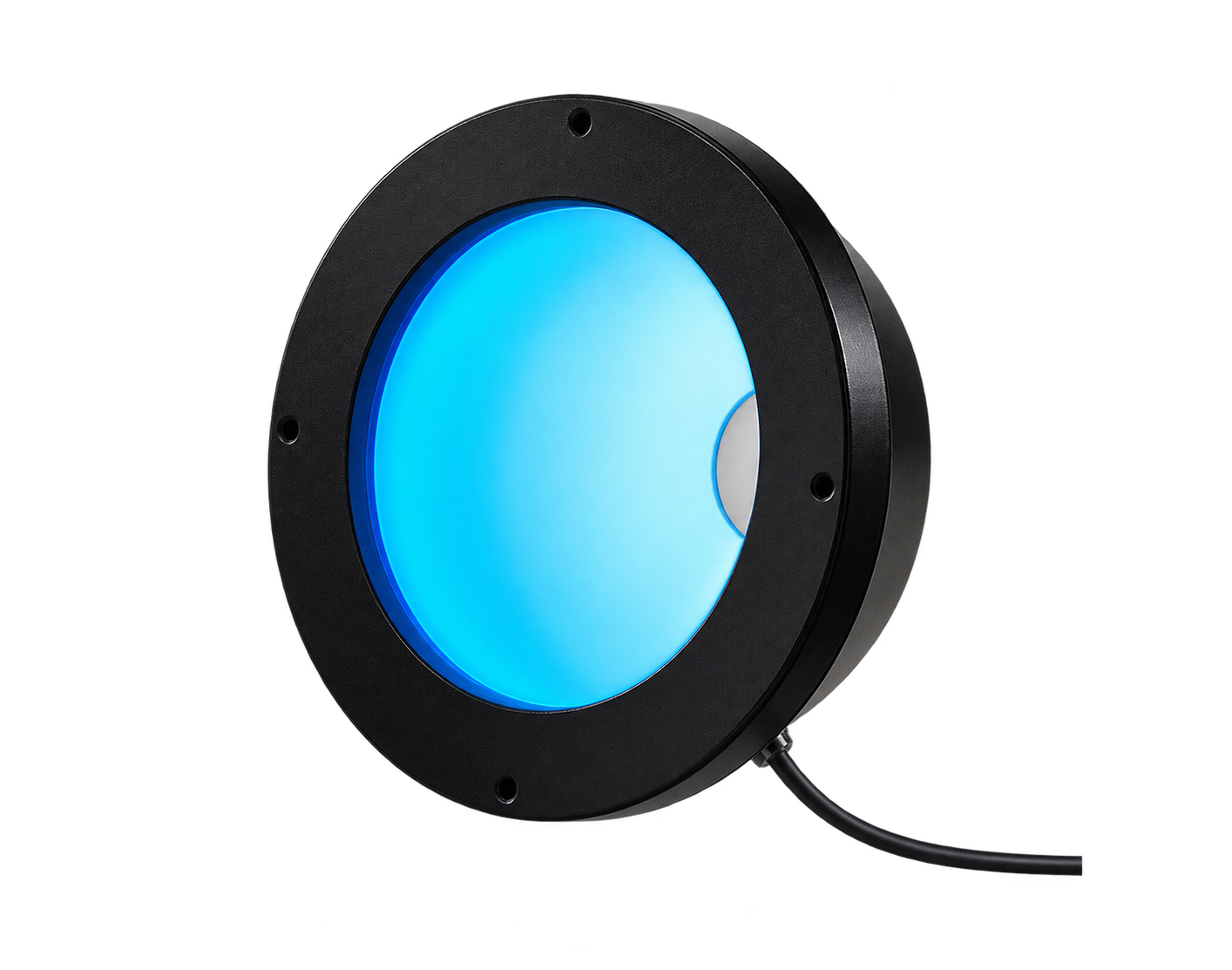

Dome light for machine vision inspection
Direct

Dome Lights

Diffuse illumination from around the part helps soften harsh shadows and reflections on curved, glossy, or uneven surfaces. Dome lights are a good option to evaluate when direct lighting creates glare or inconsistent contrast.

Specifications

SizeMultiple dome diameters and working apertures; custom dimensions are available.
ColorsWhite, Red, Green, Blue, UV, and IR options across the range; availability varies by series.
OthersDiffuse illumination softens reflections; select dome depth and aperture for the part and camera.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

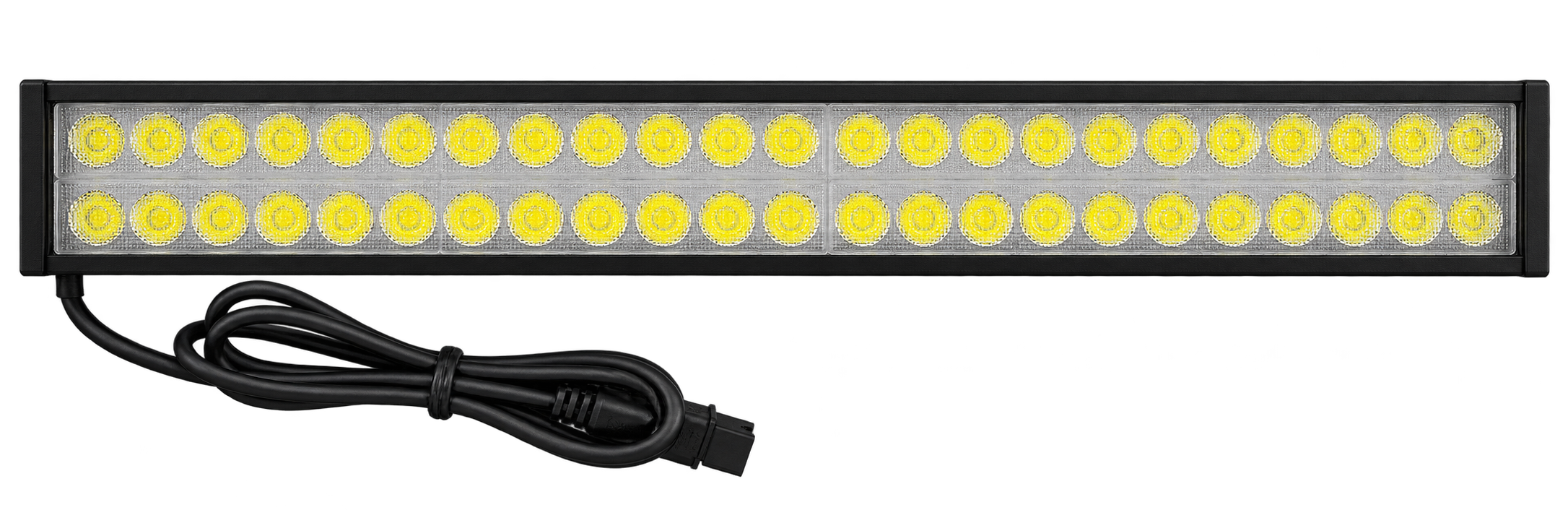

High intensity machine vision light panel
Direct

High-Intensity Lights

For inspection setups that need stronger illumination, high-intensity panel lights deliver powerful, even illumination across the viewed surface.

Specifications

FormatPanel Light
SizeAvailable in Panel Light formats; dimensions vary by model, with custom sizes available.
ColorsWhite, Red, Green, Blue, UV, and IR options across the range; availability varies by series.

Confirm product-specific values and availability with our team.

Enquire about this type →

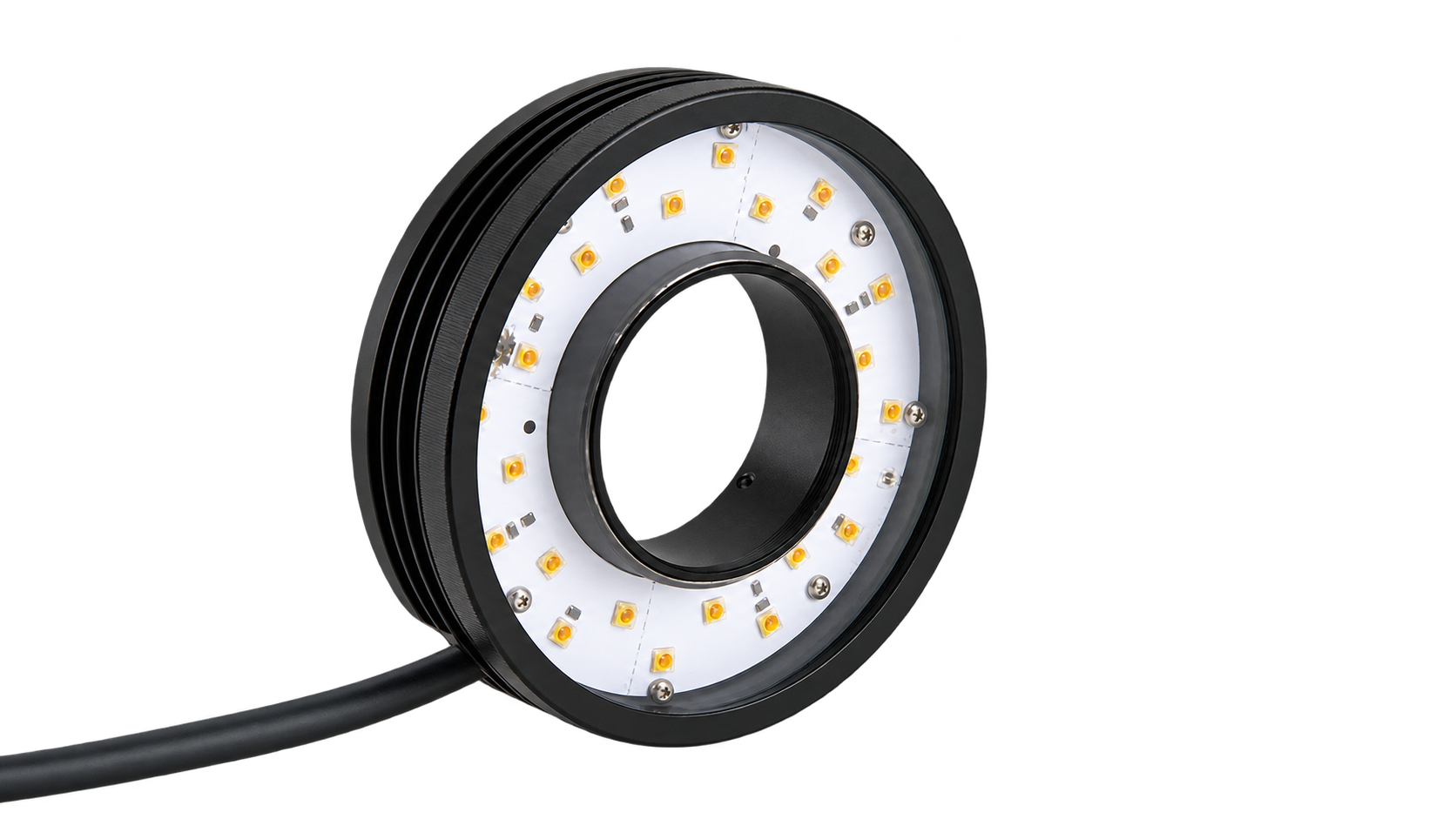

Infrared machine vision ring light with transparent background
Specialized

IR Lights

Infrared illumination supports inspections beyond the visible spectrum and can help improve contrast for selected sensors, filters, and materials. Confirm the IR wavelength against the camera and application before selection.

Specifications

Wavelength850 nm and 940 nm options are listed in the product range.
SizeMultiple model dimensions; custom sizes can be requested.
MountingSelect a bracket or mounting position to match camera distance and field of view.
OpticsChoose diffuser and optical accessories by model and inspection target.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

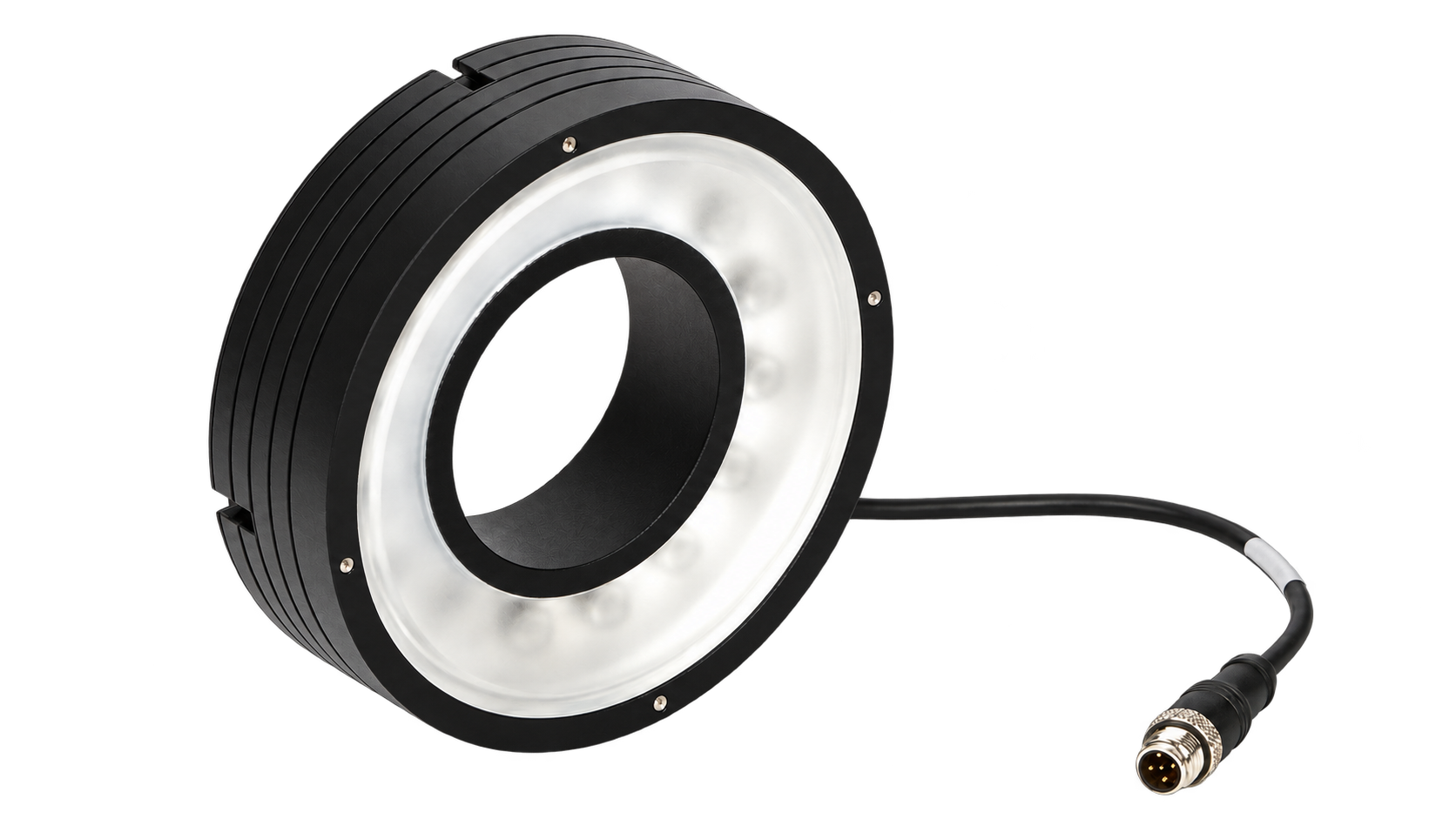

UV machine vision ring light with transparent background
Specialized

UV Lights

Ultraviolet illumination can reveal fluorescence and surface details that are difficult to distinguish under visible light. Choose the UV band and working distance to suit the material, camera sensor, and inspection method.

Specifications

Wavelength365 nm and 395 nm options are listed in the product range.
SizeMultiple model dimensions; custom sizes can be requested.
MountingSelect a bracket or mounting position to match camera distance and field of view.
OpticsChoose diffuser and optical accessories by model and inspection target.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

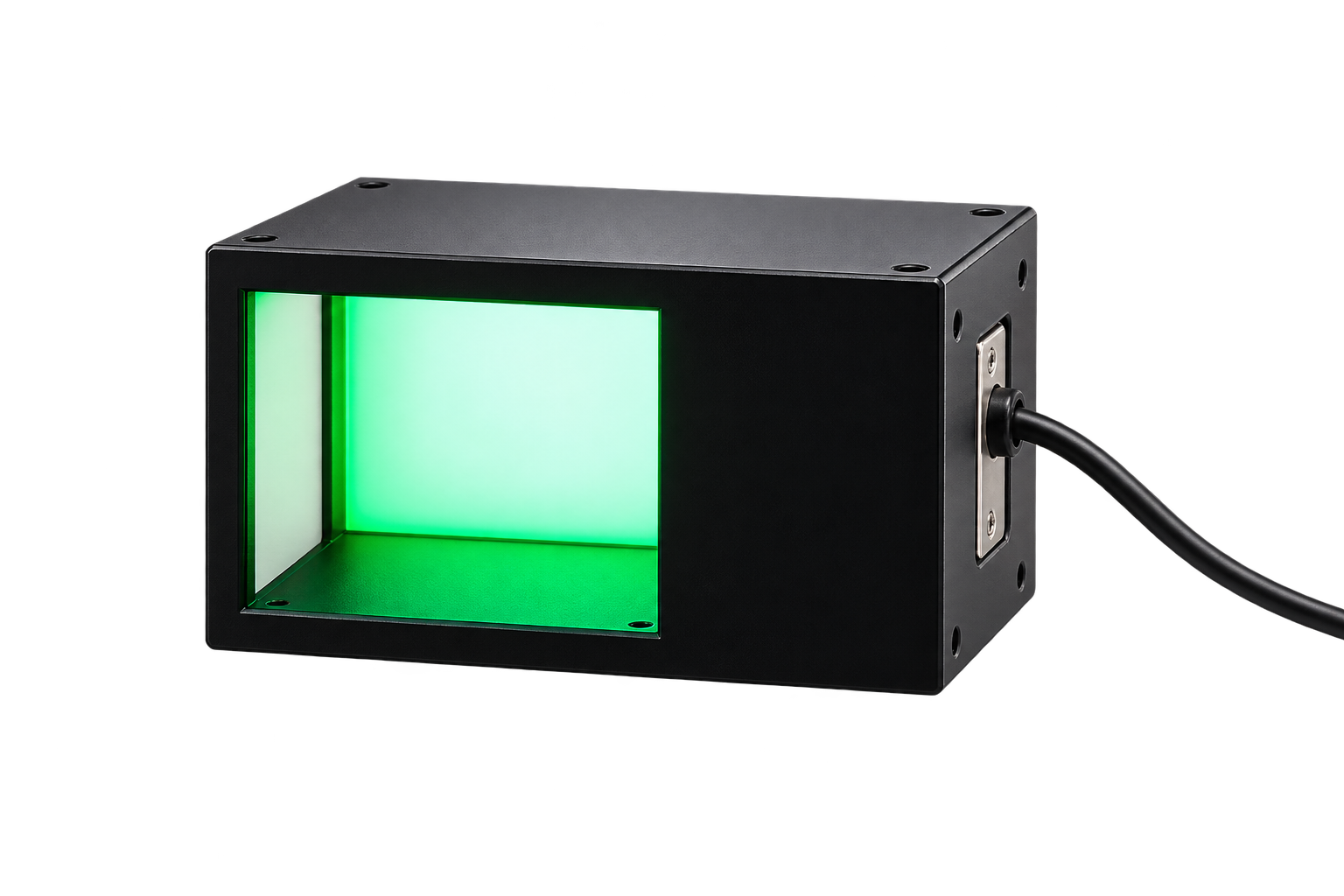

Coaxial light for machine vision inspection
Specialized

Coaxial Lights

Coaxial illumination directs light along the camera viewing axis. It can help reveal marks, printing, or surface features on flat reflective parts where off-axis lighting may produce distracting reflections.

Specifications

SizeMultiple illumination and beam-splitter sizes; custom dimensions are available.
ColorsWhite, Red, Green, Blue, UV, and IR options across the range; availability varies by series.
OthersCoaxial beam-splitter setup directs illumination along the camera viewing axis.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

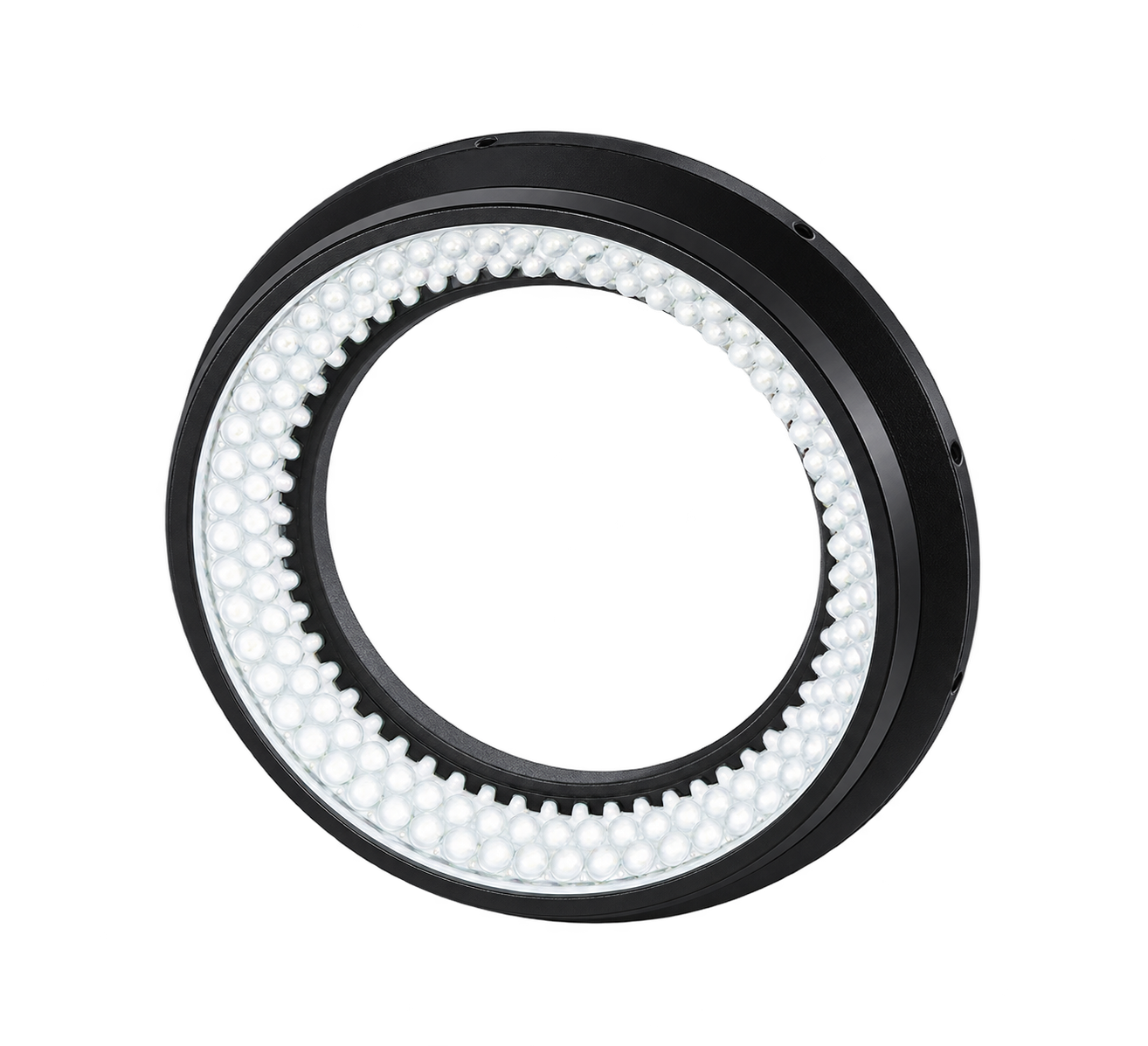

Low angle ring light for surface inspection
Specialized

Low Angle Ring Lights

Low-angle illumination skims across a surface to emphasize texture, scratches, edges, and raised features. It is useful to evaluate when front lighting does not create enough contrast on the inspection detail.

Specifications

SizeMultiple ring diameters and working angles; custom dimensions are available.
ColorsWhite, Red, Green, Blue, UV, and IR options across the range; availability varies by series.
OthersLow-angle illumination skims the surface to reveal edges, texture, and scratches.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

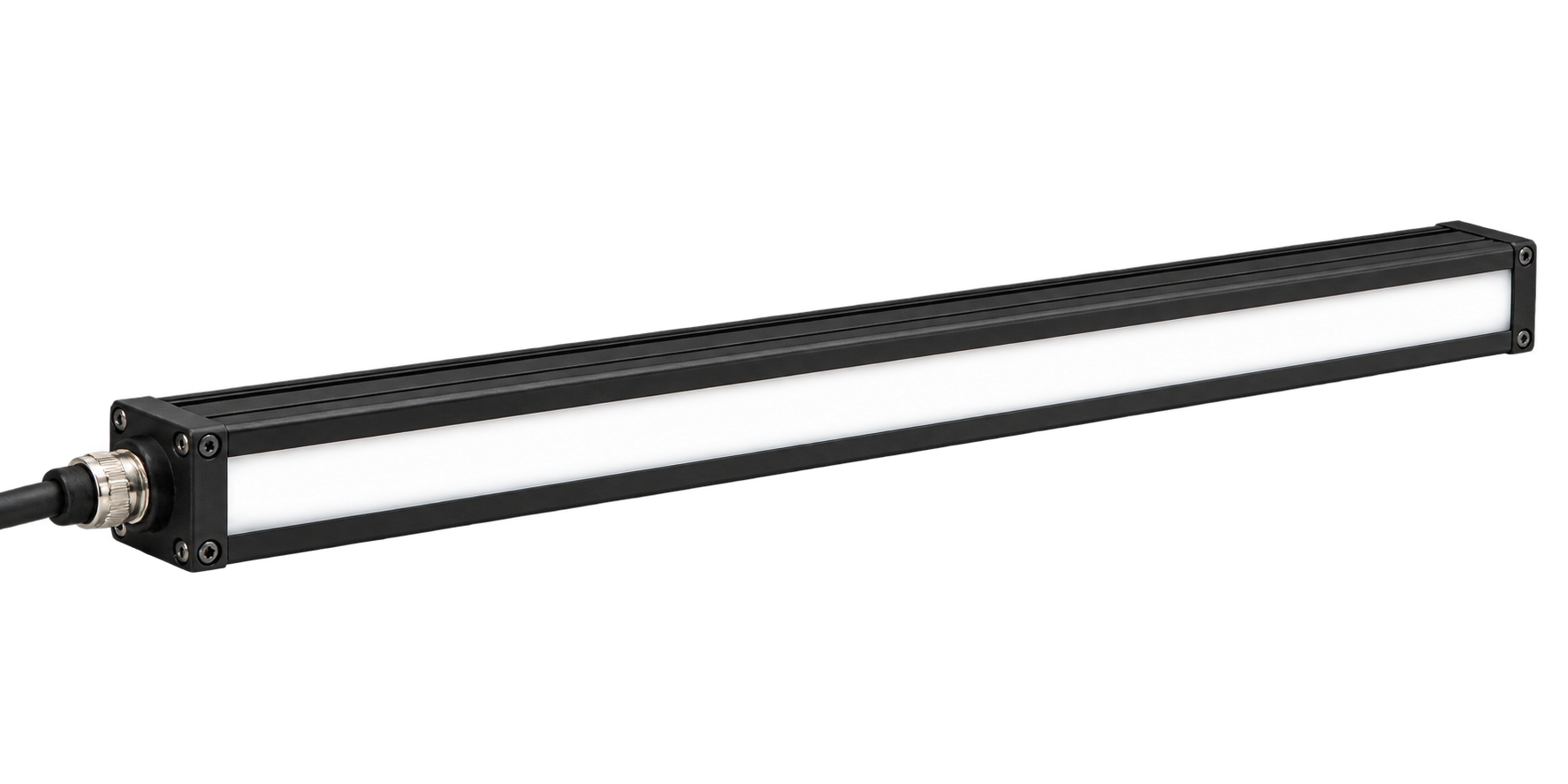

Machine vision line scan light
Specialized

Line Scan Lights

Line scan illumination provides a continuous light line across the area being imaged as a part or web moves through inspection. The light position and coverage should be matched to the scan line and working distance.

Specifications

SizeMultiple emitting lengths; custom light-line lengths and dimensions are available.
ColorsWhite, Red, Green, Blue, UV, and IR options across the range; availability varies by series.
OthersMatch line length, optics, and mounting to the camera scan line and moving web.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓
Parallel flat machine vision light
Specialized

Parallel Surface Light

Parallel surface illumination directs light across a surface at a shallow angle to emphasize texture, scratches, edges, or raised features. It is an option for surface inspections where direct front lighting does not create enough contrast.

Specifications

SizeCustom emitting area and dimensions are available for the inspection surface.
ColorsWhite and Red are listed first, followed by other colors and wavelengths selected for the required surface contrast.
OthersShallow-angle illumination emphasizes surface texture, scratches, edges, and raised features.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

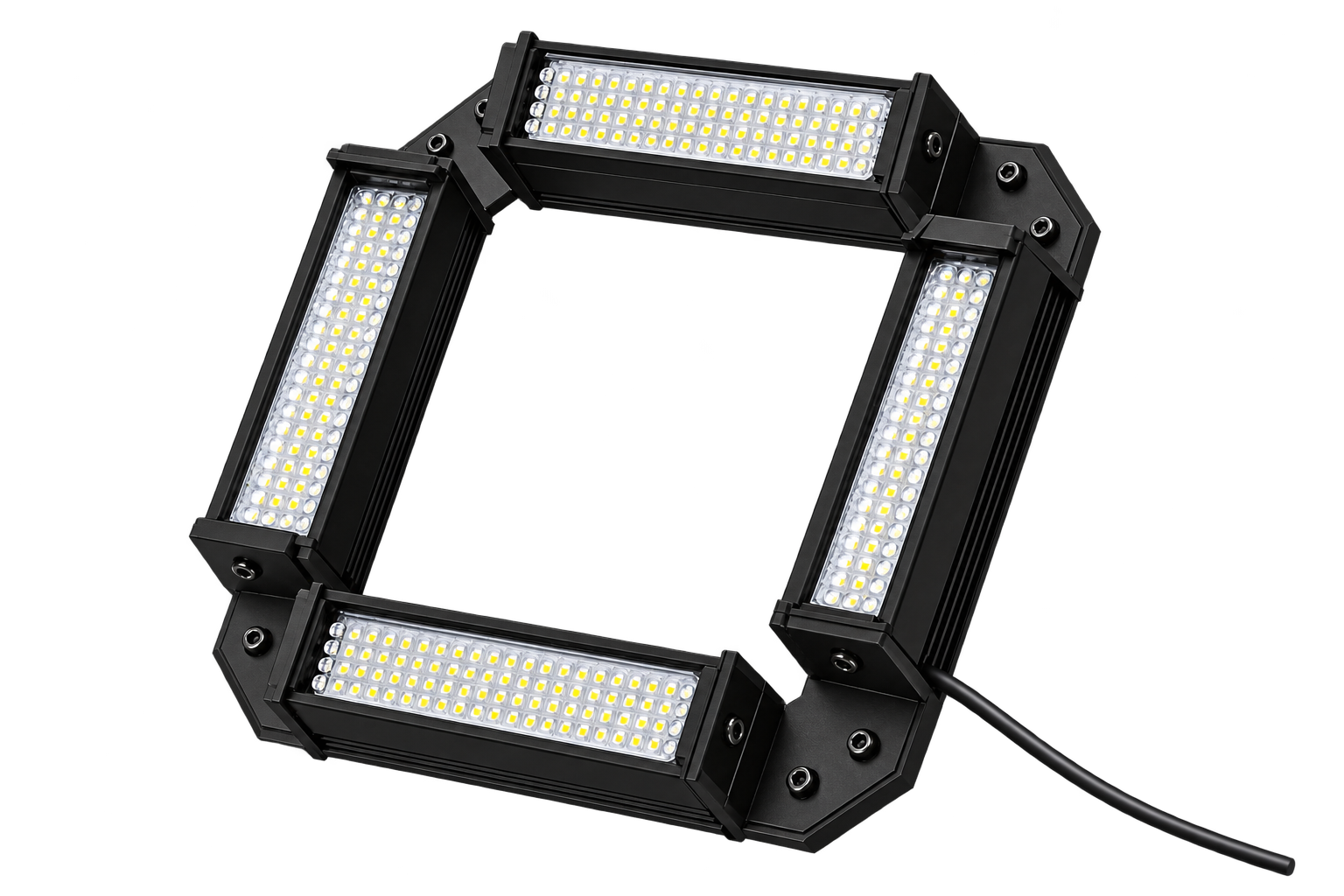

Collection of machine vision lighting modules for custom inspection setups
Specialized

Custom Lights

Custom lighting can be developed around your part and inspection target. Square bar illumination is included here for directional coverage along linear surfaces. Share sample images and application details so the suitable form and illumination approach can be reviewed.

Specifications

SizeMade to the required emitting area and assembly dimensions.
ColorsWhite and Red are listed first, followed by other colors and wavelengths specified for the inspection application.
OthersCustom geometry, including square-bar lighting; reviewed against the part and camera setup.

Confirm product-specific values and availability with our team.

Enquire about this type →Download catalogue PDF ↓

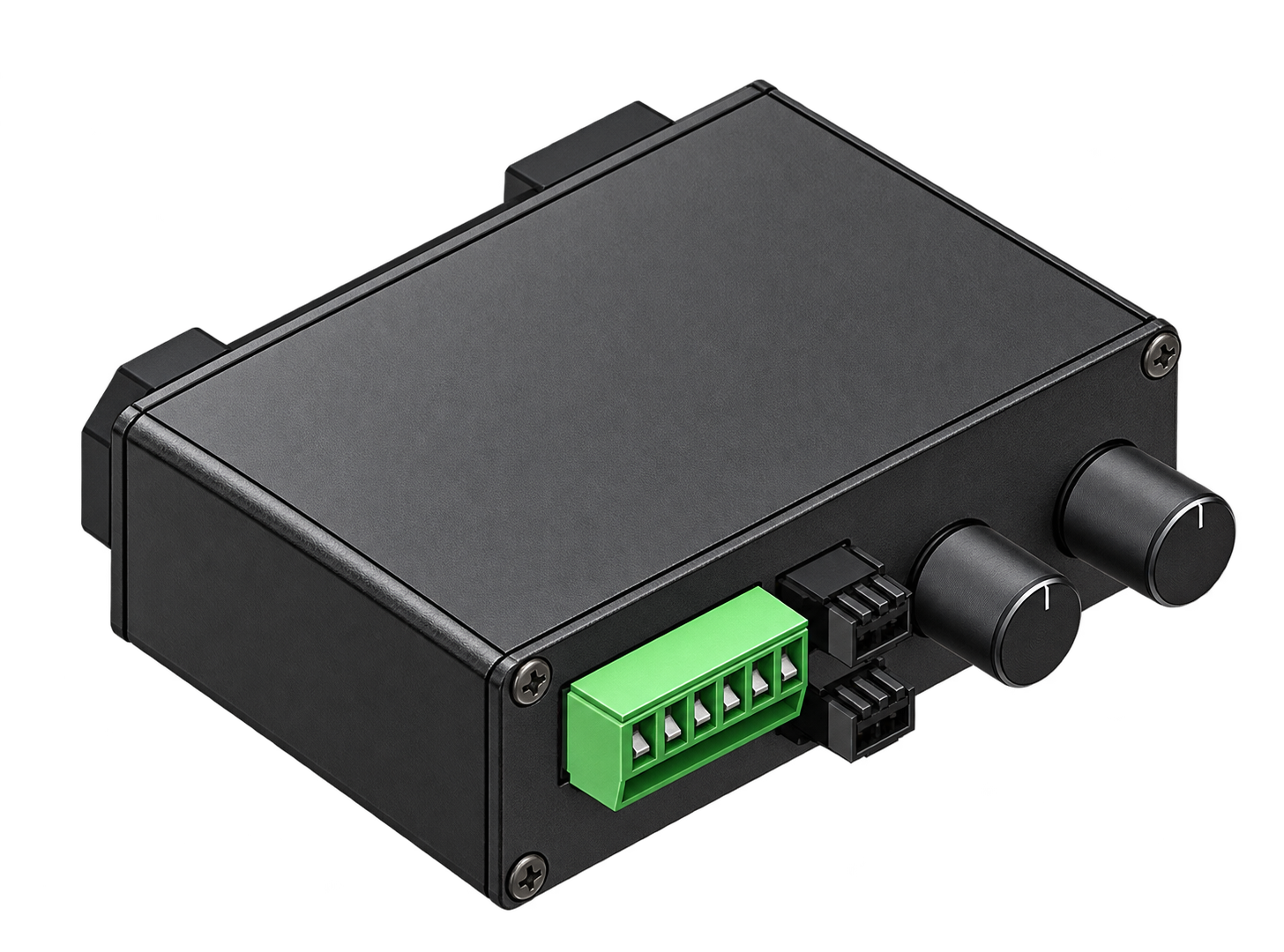

Compact PS-DPZ Series machine vision light controller
Compact Controller

PS-DPZ Series

Compact two-channel brightness controller for 24V machine vision lights, with manual adjustment and external trigger operation.

Specifications

Channels2 independent light-output channels.
Input / Output24 V DC input and output; 2 A total, up to 1 A per channel; 50 W maximum.
TriggeringExternal 5–24 V trigger with selectable high/low level; PWM delay under 30 µs and SPS delay under 10 µs.
Compatibility24 V LED machine-vision lights; keep total current at or below 2 A and each channel at or below 1 A.

Confirm the selected model against its catalogue and the connected light’s ratings.

Enquire about this controller →Download catalogue PDF ↓

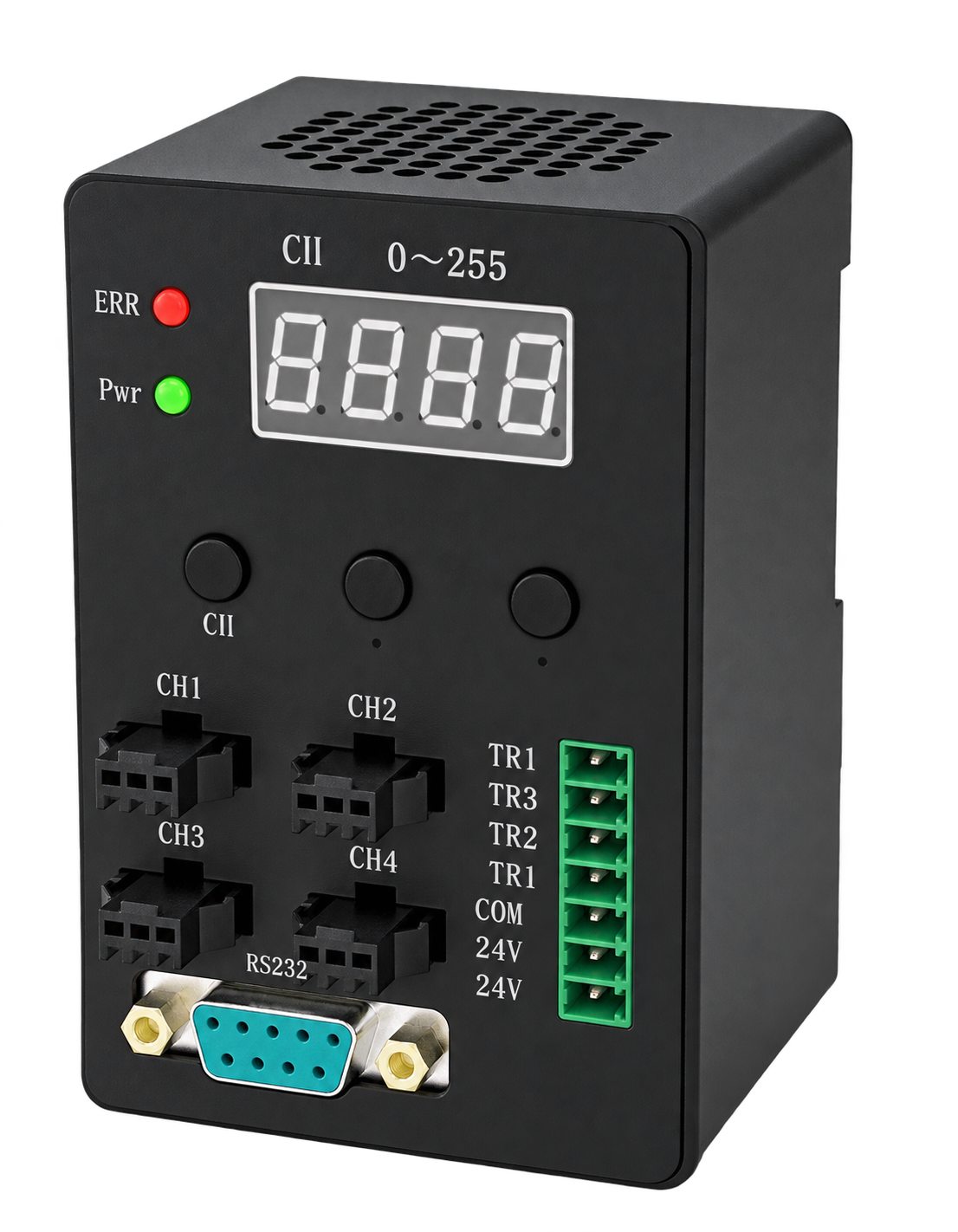

Compact PS-VPDM digital machine vision light controller
Compact Controller

PS-VPDM Series

Compact digital controller series with manual brightness adjustment, external triggering, and RS232 communication.

Specifications

Channels2- or 4-channel models; 3 A or 5 A maximum current per channel, depending on model.
Input / Output24 V DC input and regulated 24 V output; use the model selection table for its power/current limits.
Triggering5–24 V external trigger. Edge trigger in strobe mode; level trigger in always-on/off modes. Millisecond and microsecond strobe.
Compatibility24 V machine-vision lights through the SM-03V interface; do not exceed the model’s total built-in supply rating.

Confirm the selected model against its catalogue and the connected light’s ratings.

Enquire about this controller →Download catalogue PDF ↓

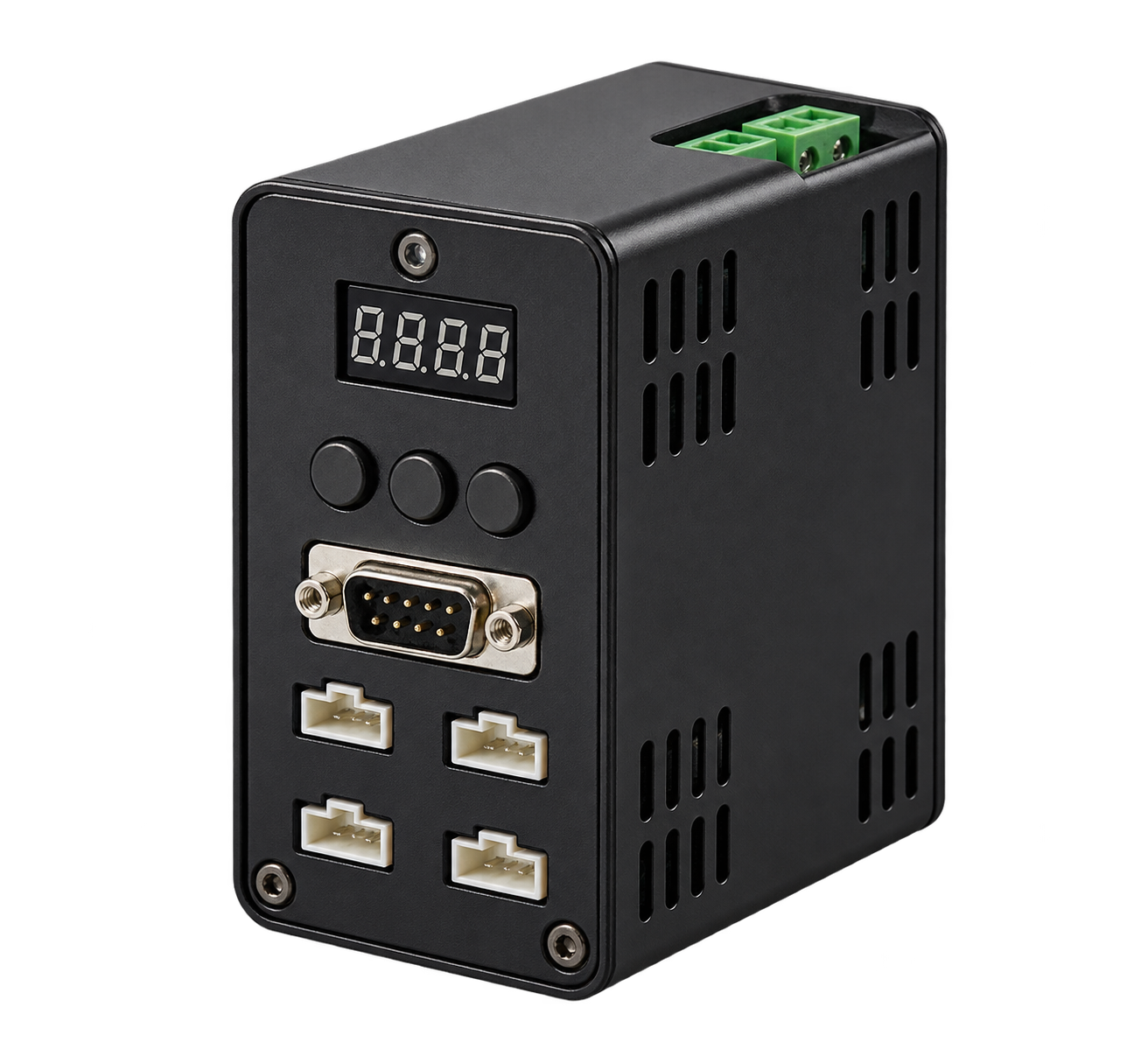

Compact PS-DPS Series four-channel machine vision light controller
Compact Controller

PS-DPS Series

Four-channel digital controller for machine vision lights, with panel or serial brightness adjustment and external trigger support.

Specifications

Channels4 light-output channels.
Input / OutputExternal 12–24 V DC input; 12–24 V output; 3.5 A total, up to 3.1 A on one channel; 125 W maximum.
TriggeringExternal 5–24 V high- or low-level trigger; strobe delay under 8 µs and digital-mode delay under 25 µs.
Compatibility12–24 V light sources through SMP-03V outputs; keep the total within 125 W / 3.5 A and a single channel within 3.1 A.

Confirm the selected model against its catalogue and the connected light’s ratings.

Enquire about this controller →Download catalogue PDF ↓

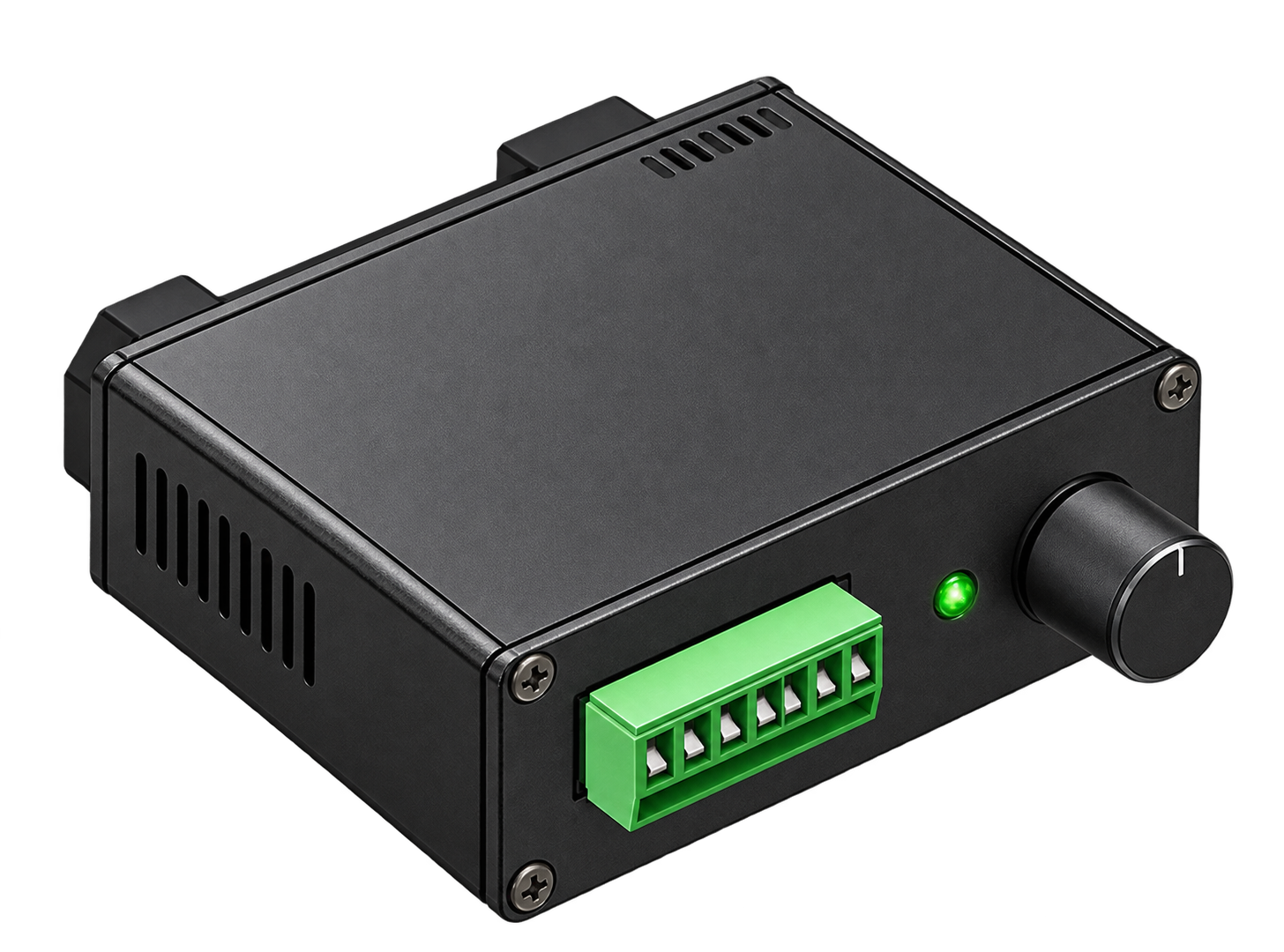

Continuous light controller with adjustment dial and power connections
Controller

Continuous Light Controllers

Continuous controllers keep a compatible vision light on during image capture. They are suited to steady inspection conditions; confirm the light and controller are compatible before selecting the output and operating mode.

Specifications

Channels2 or 4 channels, depending on PS-PDM / PDMI model.
Input / OutputAC 80–264 V, 50/60 Hz input; 24 V DC output. Models include 65 W, 120 W, and 200 W ratings.
TriggeringExternal trigger supported. Level trigger for continuous on/off; edge trigger for strobe modes. 5–24 V control signal.
Compatibility24 V machine-vision LED lights, within the selected controller model’s total power and per-channel current rating.

Confirm the selected model against its catalogue and the connected light’s ratings.

Enquire about controllers →Download catalogue PDF ↓

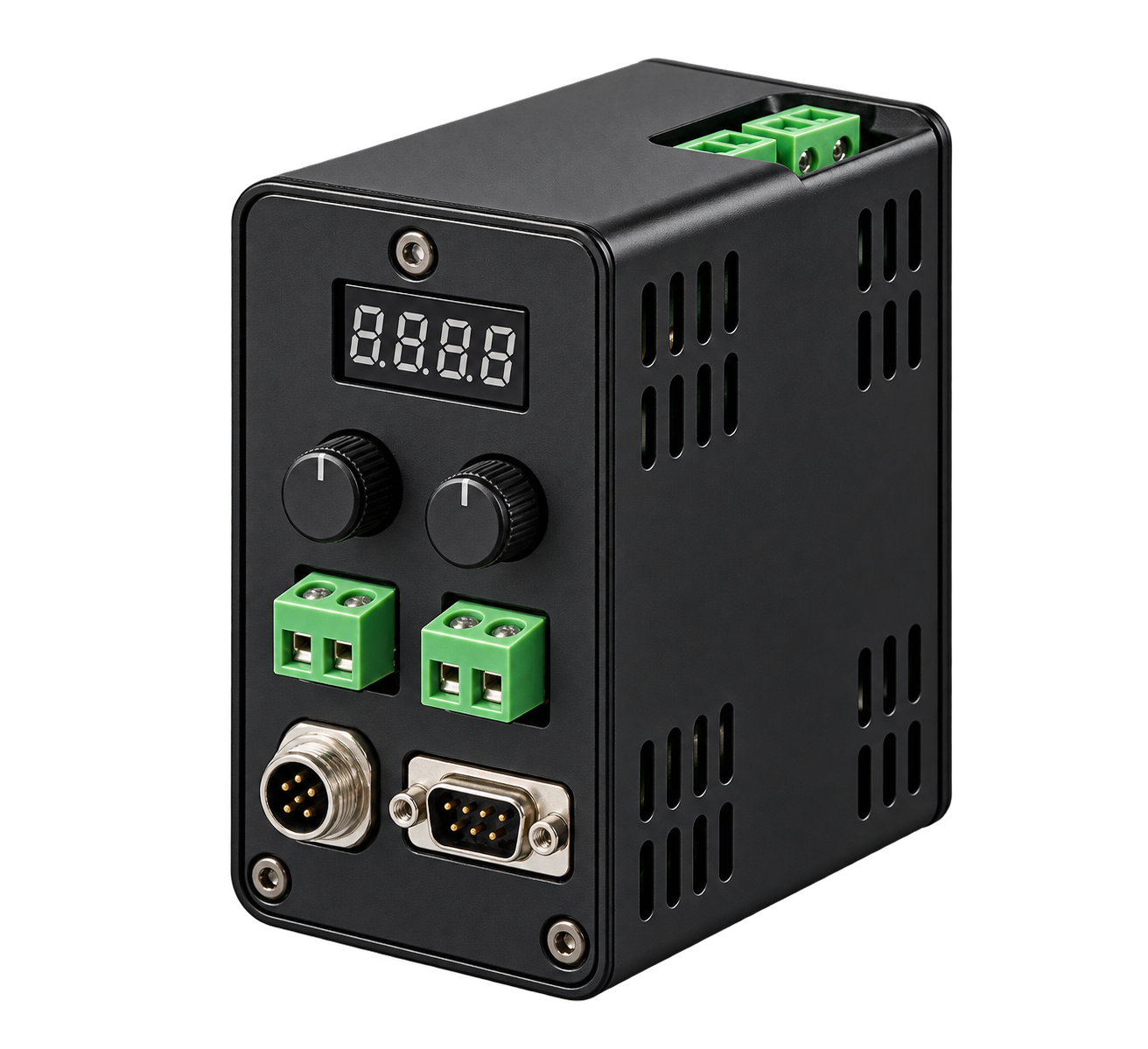

Strobe and pulse light controller with display, adjustment knobs and connections
Controller

Strobe / Pulse Controllers

Strobe controllers send short light pulses in coordination with image capture. In a compatible camera and lighting setup, timed pulses can help capture moving parts clearly while controlling the exposure window.

Specifications

Channels2 or 4 channels, depending on PS-PDM / PDMI model.
Input / OutputAC 80–264 V, 50/60 Hz input; 24 V DC output. Select model by its 65 W, 120 W, or 200 W rating.
TriggeringExternal 5–24 V trigger; edge trigger for strobe and level trigger for on/off modes. Millisecond and microsecond strobe settings.
Compatibility24 V machine-vision LED lights; keep total load and each channel within the selected model’s ratings.

Confirm the selected model against its catalogue and the connected light’s ratings.

Enquire about controllers →Download catalogue PDF ↓

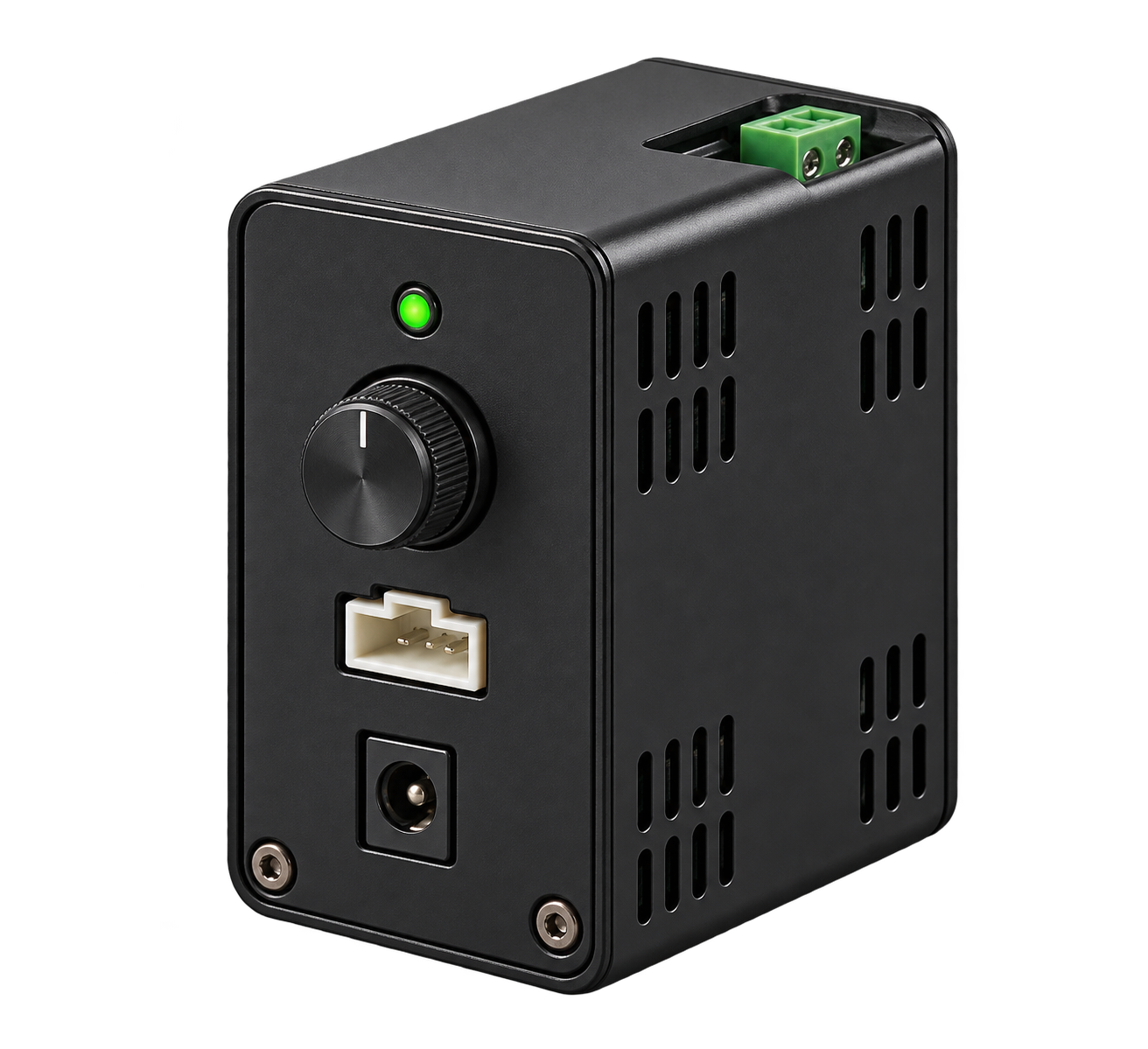

Single-channel machine vision light controller with adjustment dial
Controller

Single-Channel Light Controllers

A single-channel controller operates one compatible light output. It can simplify a setup with one illumination source; check the required output, triggering, and adjustment features against the selected light.

Specifications

ChannelsPS-PRM models are available with 1, 2, or 4 channels.
Input / OutputAC 80–264 V, 50/60 Hz input; 24 V DC output. Models cover 25 W, 65 W, 120 W, and 200 W ratings.
TriggeringExternal PNP/NPN trigger; high- or low-level. Continuous, flash, millisecond flash, and microsecond flash modes.
Compatibility24 V machine-vision lights. Match constant-voltage or constant-current drive and total load to the selected PS-PRM model.

Confirm the selected model against its catalogue and the connected light’s ratings.

Enquire about controllers →Download catalogue PDF ↓

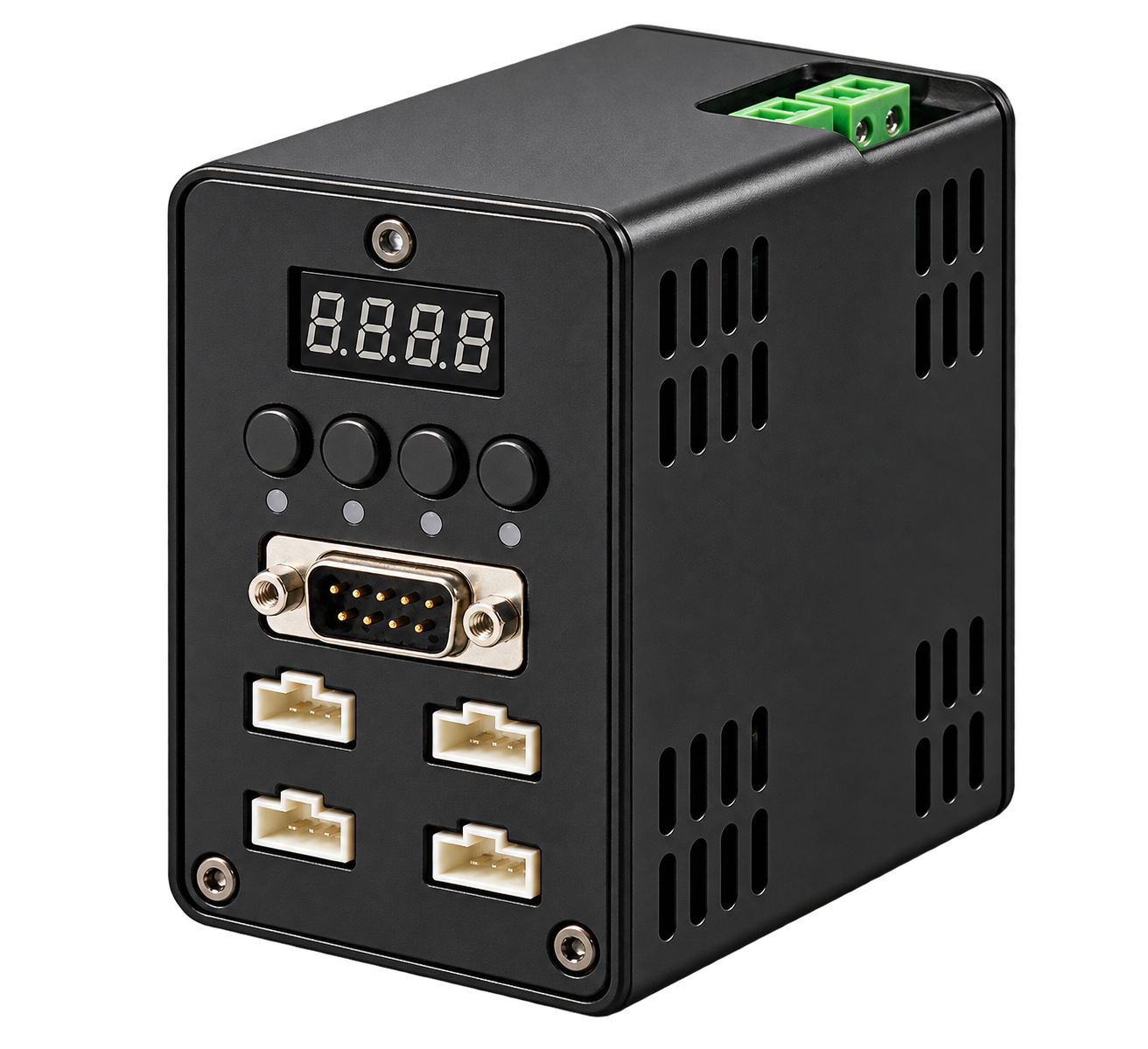

Four-channel machine vision light controller with separate output ports
Controller

Multi-Channel Light Controllers

Multi-channel controllers operate more than one compatible light output from a shared unit. They can coordinate illumination across inspection zones; confirm channel count, timing needs, and electrical compatibility for the application.

Specifications

Channels2 or 4 channels, depending on PS-PRS model.
Input / OutputAC 88–264 V, 47–63 Hz input; adjustable 24 V output. Model power ratings: 30 W, 45 W, 65 W, 120 W, or 150 W.
TriggeringOptional positive- or negative-polarity trigger; 5–24 V trigger level; trigger time under 80 µs.
Compatibility24 V machine-vision lights. Distribute the load within the selected model’s total and per-channel ratings.

Confirm the selected model against its catalogue and the connected light’s ratings.

Enquire about controllers →Download catalogue PDF ↓

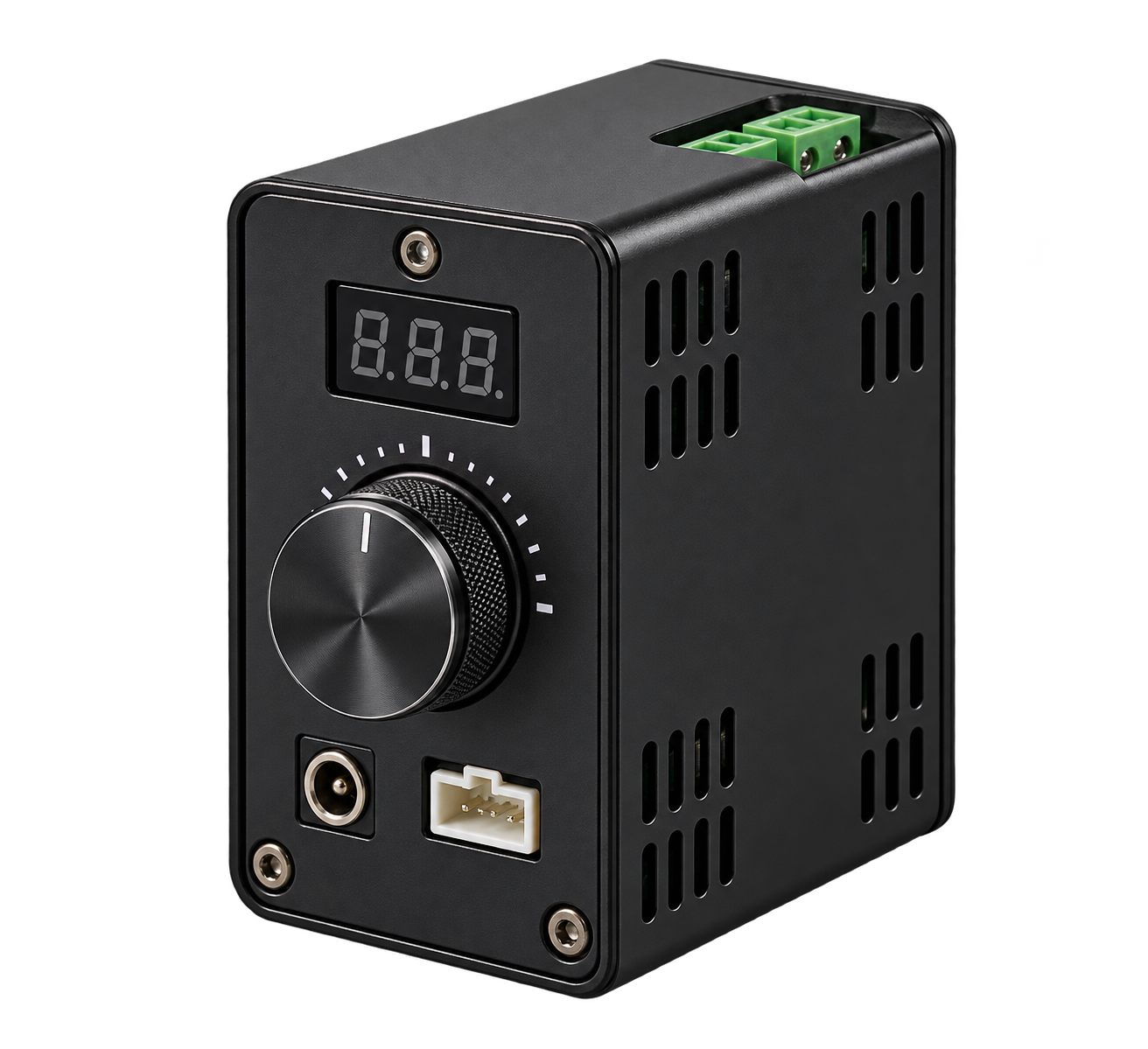

Machine vision light intensity controller with dimming dial and digital display
Controller

Intensity / Dimming Controllers

Intensity controllers let operators adjust light output to achieve useful image contrast and exposure. They are suitable where the selected light supports dimming; confirm the required adjustment range and control method.

Specifications

ChannelsPS-PRS models are available with 2 or 4 channels.
Input / OutputAC 88–264 V, 47–63 Hz input; adjustable 24 V output. Select from 30 W to 150 W model ratings.
TriggeringOptional positive- or negative-polarity trigger; 5–24 V trigger level; trigger time under 80 µs.
Compatibility24 V machine-vision LED lights that support dimming; stay within the selected controller’s power and channel ratings.

Confirm the selected model against its catalogue and the connected light’s ratings.

Enquire about controllers →Download catalogue PDF ↓
What to share

Give Us The Context Behind The Image.

Light selection depends on the surface, feature, camera position, working distance, and available space. Include what you know; the team can help identify missing details.

  • Part material, shape, and finish
  • Feature or defect to inspect
  • Camera position and working distance
  • Available space and production conditions
Request a lighting review ↗

Confirm Before Ordering

Specifications vary by model. Ask us to confirm:

DimensionsFit and mounting
IlluminationColor and intensity
IntegrationPower and control

This website does not assign unverified specifications to individual light models.

Need Help Choosing A Light?

Send a part photo, sample image, or short description of the inspection task.

Send an enquiry ↗
Chat on Whatsapp
